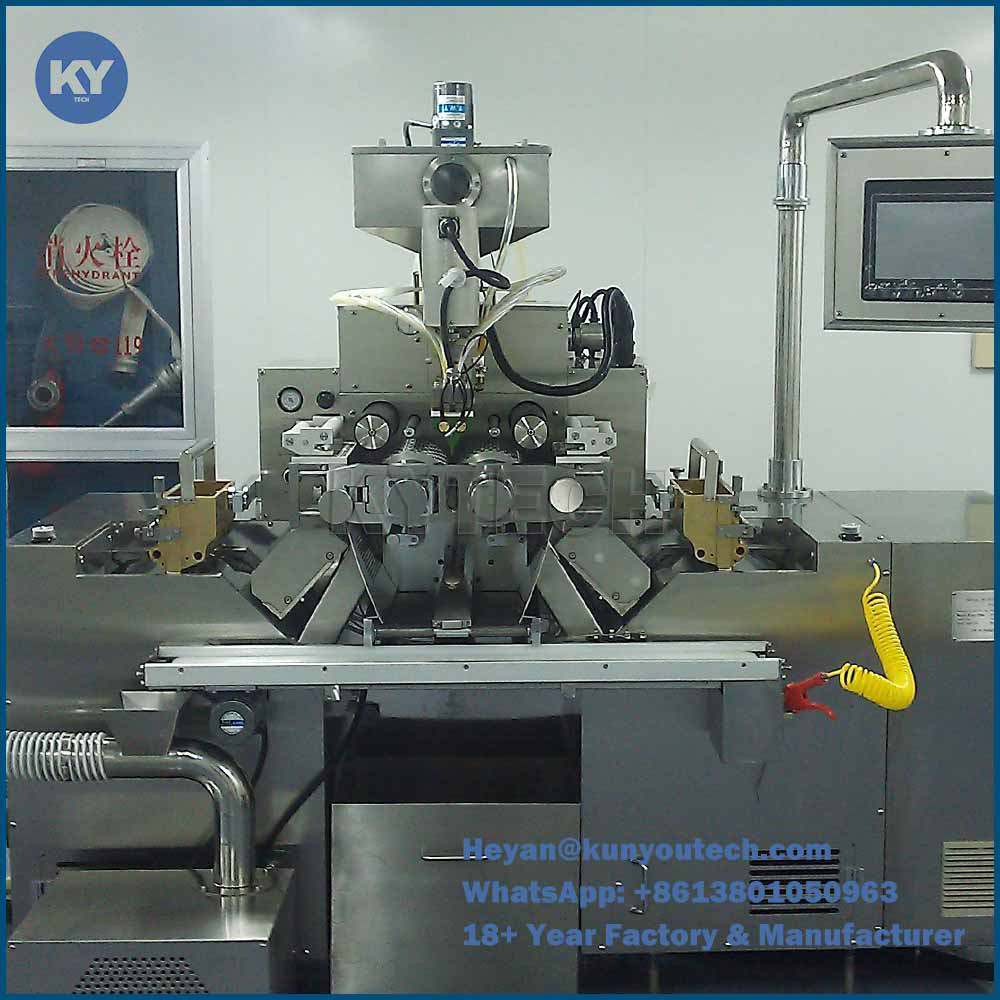

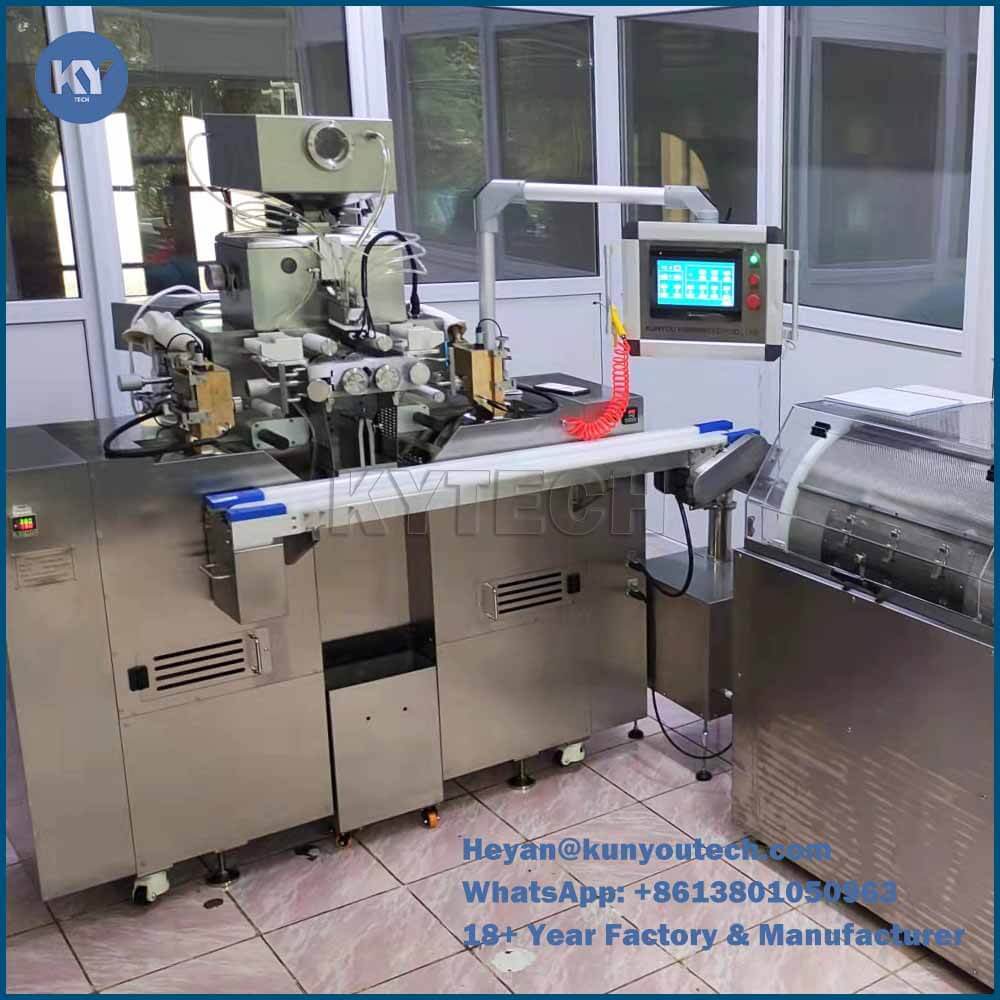

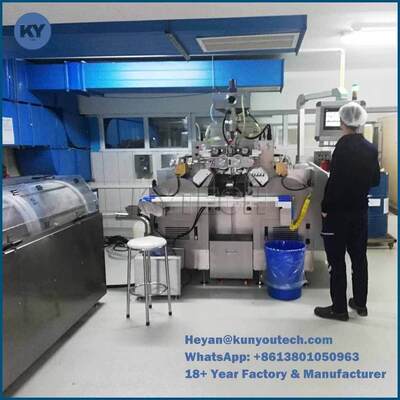

Full Automatic 7 kw Pharmaceutical Soft Capsule Making Machine With Switch / Button Control
Quick Detail
|
Product Name |
Soft capsule encapsulation machine |
Driven Type |
Electric |
|
Capacity |
43470pcs /hour, 8#OV |
Control Mode |
Full Automatic |
|
Application |
Food, pharmaceutical, fish oil making |
Capsule shape |
OV, OB,etc |
Product Description
S406 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.
Softgel encapsulation machine can control and precisionally inject the oil,mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size,shape and color. Owing to the high productivity,charging exactly,quality stabilization,high finished product rate,it is favoured by more and more manufacturers and used in the fields of medicine,health products,cosmetic and game-colour ball,etc.
Specification
|

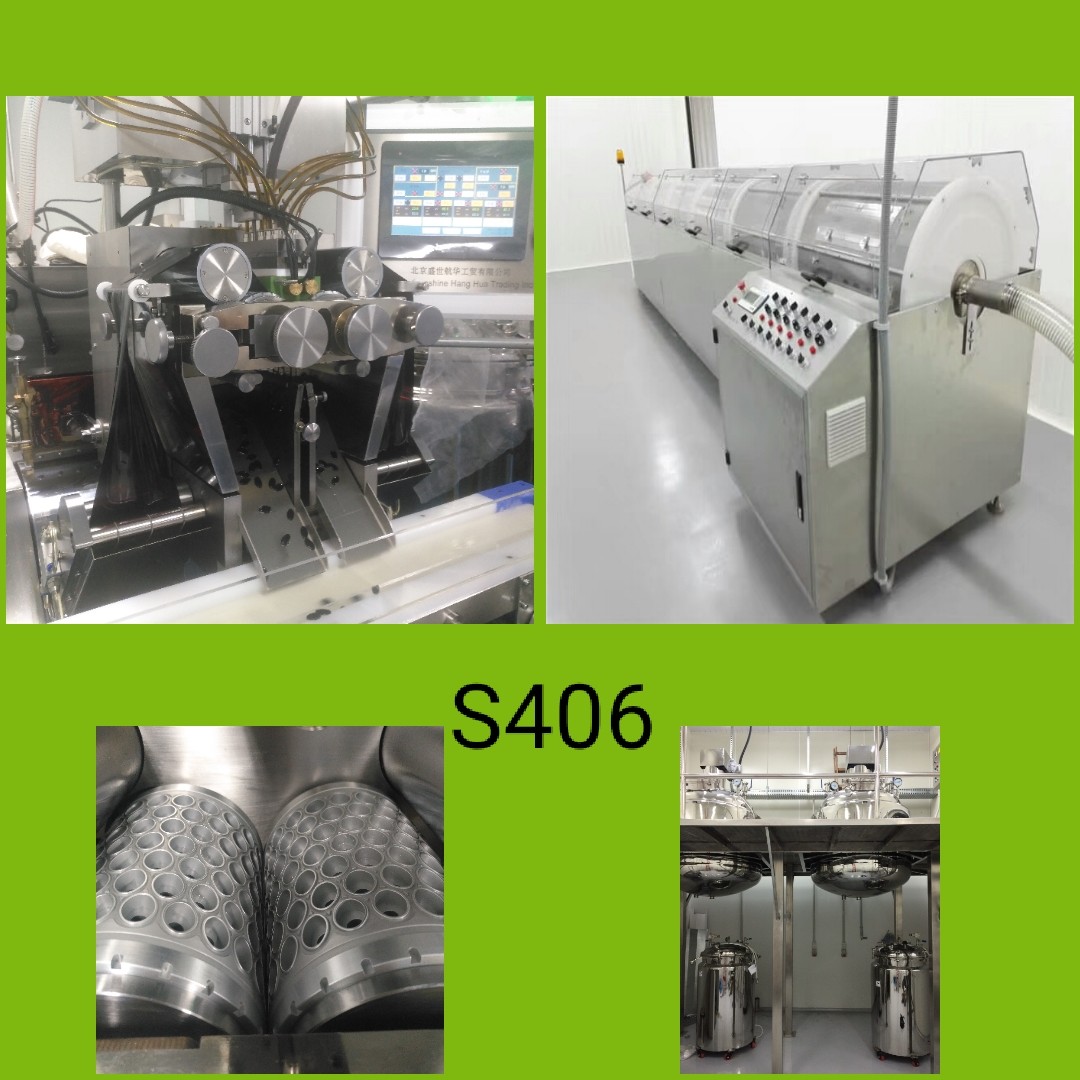

Model |
S406 |
|

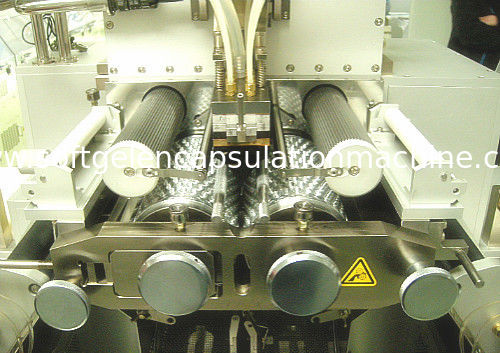

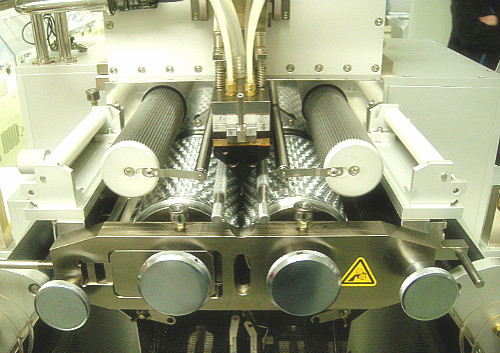

Die roll diameter |
Ф103mm |
|
Die roll length |
152mm |
|
Die roll speed |
0~5rpm |
|
Plunger numbers |
10 |
|
Dosage tolerance |
± 2% |
|
dimension |
880X640X1900mm |
|
weight |
900kg |
|
Power consumption |
7kw |
|
Control mode |
PLC+HMI Switch/buttons |
|
Output rate |
8#OV 43470 pcs/hour |
What is the specifications of AutomaticSoftgel encapsulation machine ?
1)According to client's sepcial requirements, provides the special design such as oxgency pretection;
2)So many optional devices for clients to choose from R&D to big scale production.
3)Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
4)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
5)Automatic checking: with servo motor ,the machine can run at 7rpm
6)Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
7)Main shaft parallelism is in 0.02mm
8)The die roll adjust and changment with clitch control ,save gelatin and time, easily operate
8)Use the Germany bearing; .
9)The shaft of the 2 rollers for die roll deviation is in 1.5%.
10)With Worm gear, the gear and shaft adopt special material with high accurary and long service life
11) Medicine hopper adopts thermial insulation design
12) Local language input in machine avaliable.
13)Micro lubrication
