Color Mixing Vessels color mixer for Vgel and animal gelatin softgel production

gelatin color mixer gelatin filling softgel melting tank

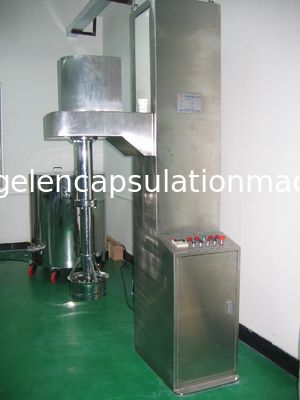

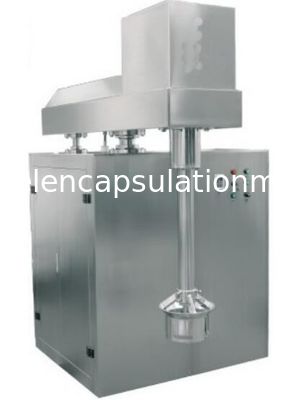

Description: Model CM-1 Color mixer is used for mixing the color with the gelatin, it consists of hydraulic lifting system, mixing system and electrical control system.

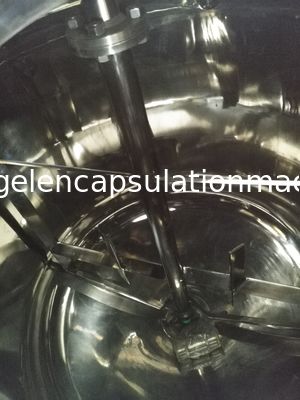

Principle: Insert the mixer vertically into the vessel with position of centre, the stirrer head depth is 1/3 from the bottom to the liquid, thus keeps enough space to let the materials flow freely at the bottom.

Features:

1. Easy to operate and easy to clean, the color becomes even by mixing, high efficiency.
2. Configuration: ABB Motor, Panasonic Inverter, Fuji buttons, Siemens electrical components, contacting parts with the materials is SS316L and the machine is covered by SS304.
3. The mixer is put into the tank by means of hydraulic system, which can be put in any position of the tank by hydraulic system.
4. Overall dimensions: 1590*1200*2050(2950)mm, 0~1,400 rpm ( speed variable )
5. By special design and the form and bubbles are decreased during the mixing process as the mixer works in the special groove.
6. Weight: 600kg
7. Total Power: 13.5kW
