6 Baskets Tumble Plastic Drying Trays For Drying Softgel / Paintball
Quick Detail
|
Product Name |
Soft capsule Tumble Drying Machine |
Power consumption |
1.5kw |
|
Drying fan Motor(KW) |
2KW |
Basket per section |
6 |
|
Application |
Drying softgel/paintball or pills or fish oils,etc |
|
|
Product Description

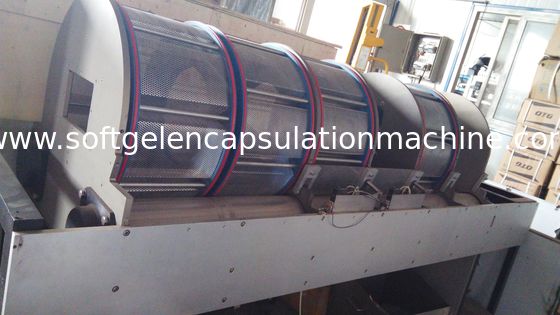

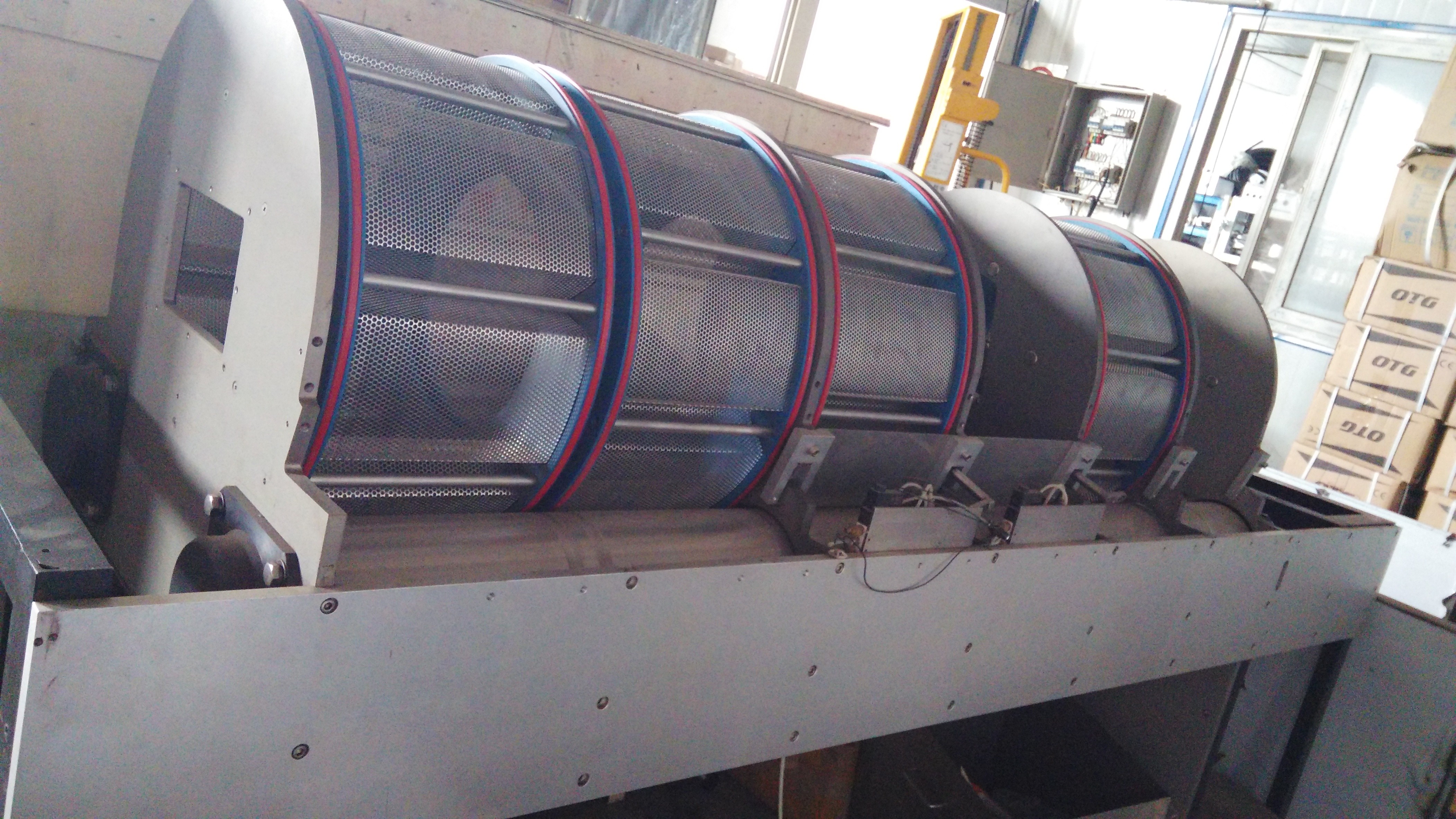

TD-4 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-4 Soft Capsule (Softgel) and paintball Tumble dryer adopts a new rolling cage type dryer. The rotary cage inside diameter is ∮580 mm. Each section can accommodate 20-25kg. Its compact and smart outlook and easy to load and unload only with one hand make it more in line with the requirements of GMP. The drying cycle is controlled by PLC unified. Users can adjust the cycle time conveniently. As the dryer and fan adopts modular interface, users can regulate air flow according to your needs.
1. TD-4 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.
|
Model |
TD-4 |
|
Basket diameter(mm) |
526 |
|
Basket length(mm) |
282 |
|
Drying fan(kw) |
2 |
|
Motor Power(kw) |
1.5 |
|
Basket per section |
6 |
Competitive Advantage
1. The new rolling cage type dryer
2. Compact and smart
3. Easy to clean and be assembled and disassembled
