Gelatin service tank
The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.

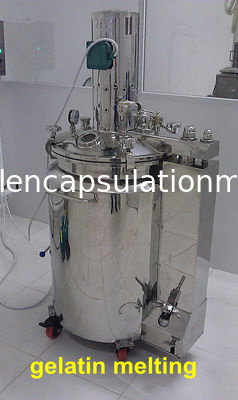

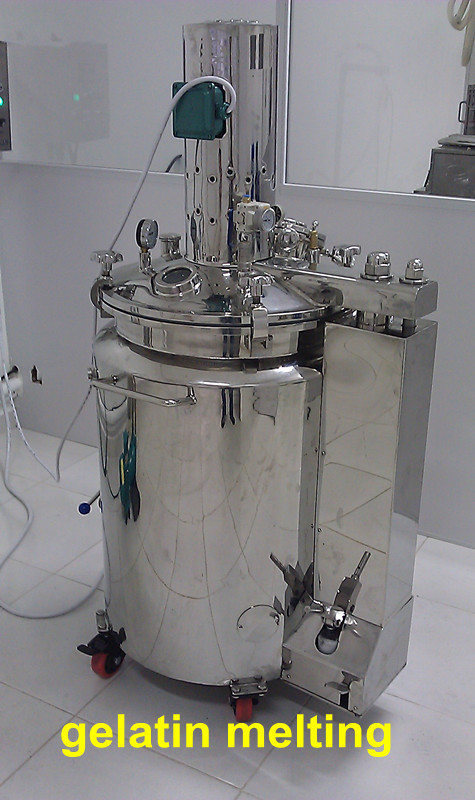

Stationed gelatin melter
| Mounting | Four feet support.on platform |
| Structure | Three layered water bathe |
| Material | SUS304.Medicine contacting partsSUS316 |
| Standard | GB 150-1998 and GMP |
| Max vacuum | <-0.09MPa |
| Opening | View glass DN100.Man hole Φ450×Φ350 |
| Temperature sensor | Bottom RTD sensor |
| Power | 380V/240V 50/60Hz 7.5Kw |
