Movable gelatin melter and service tank, gelatin melting tank gelatin melter gelatin melting machine
Gelatin service tank

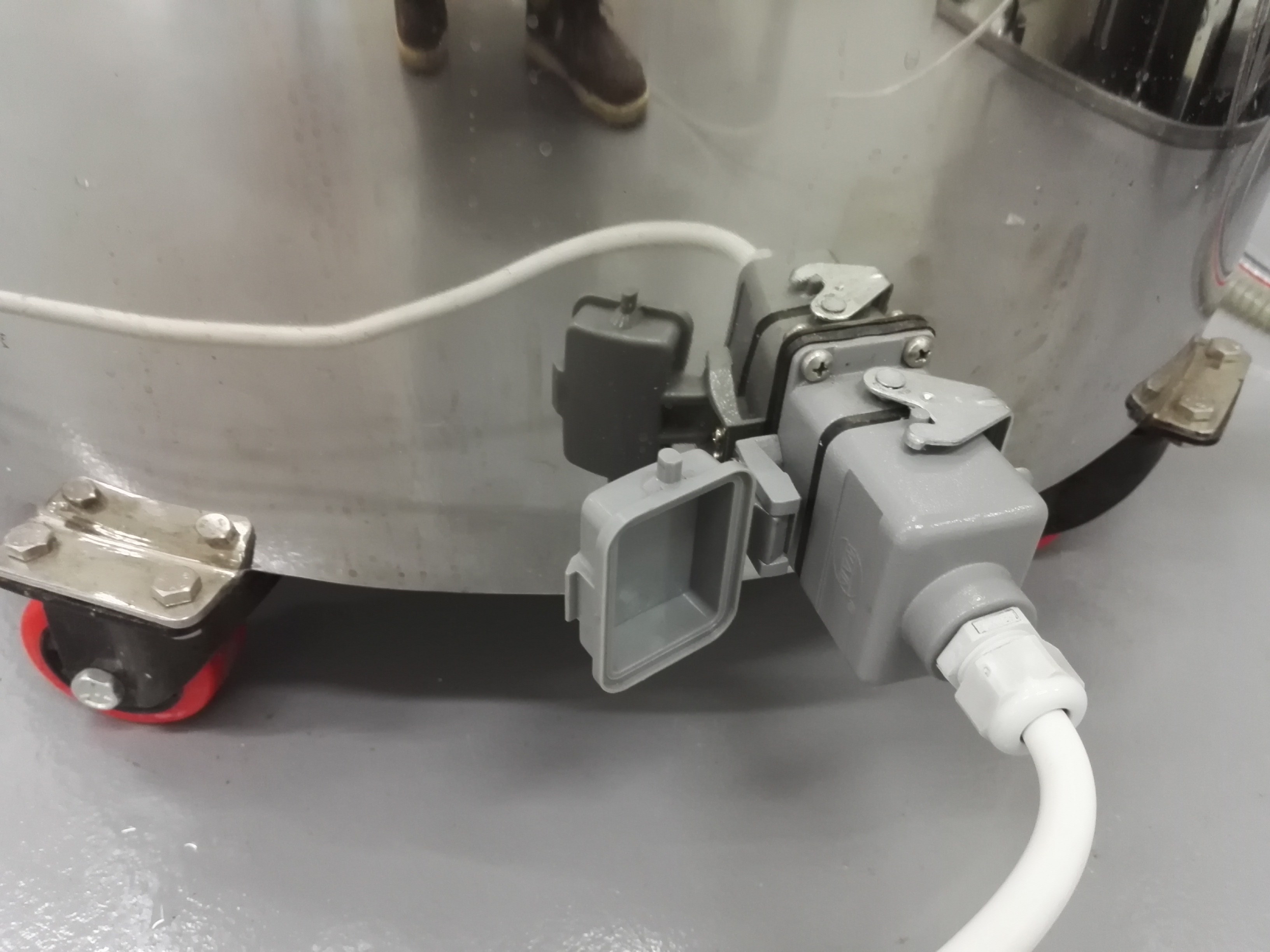

The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.

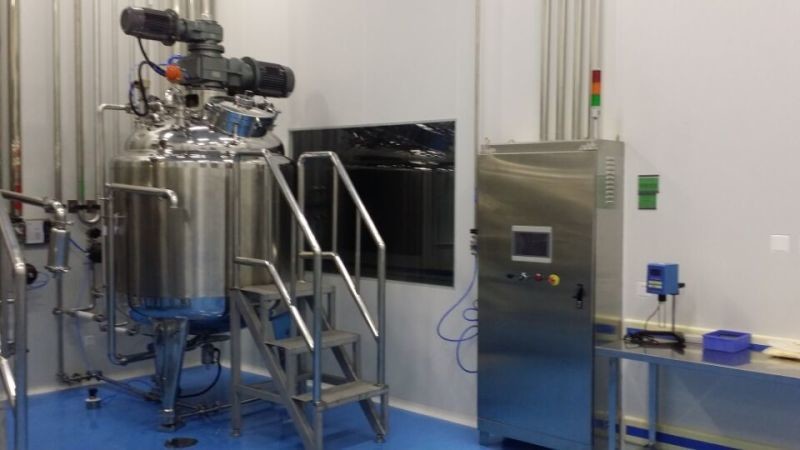

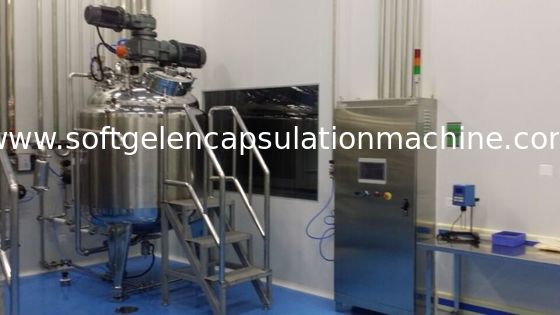

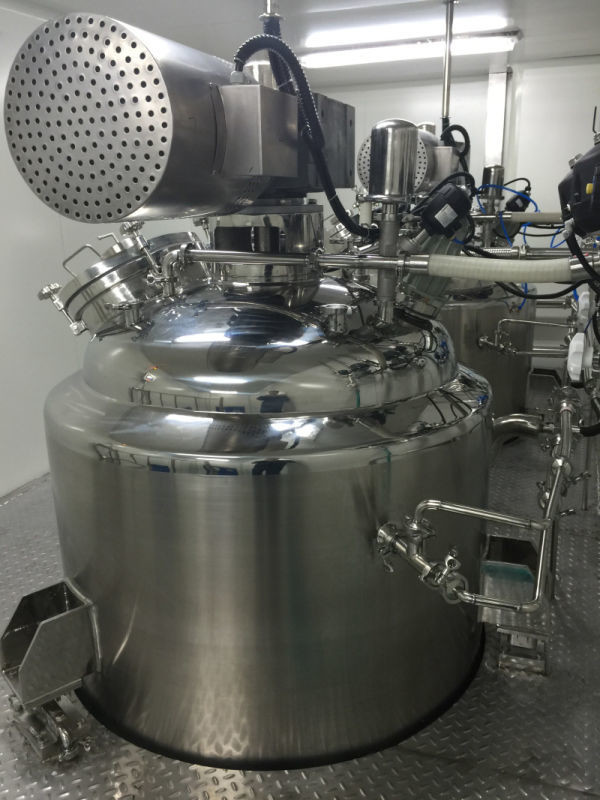

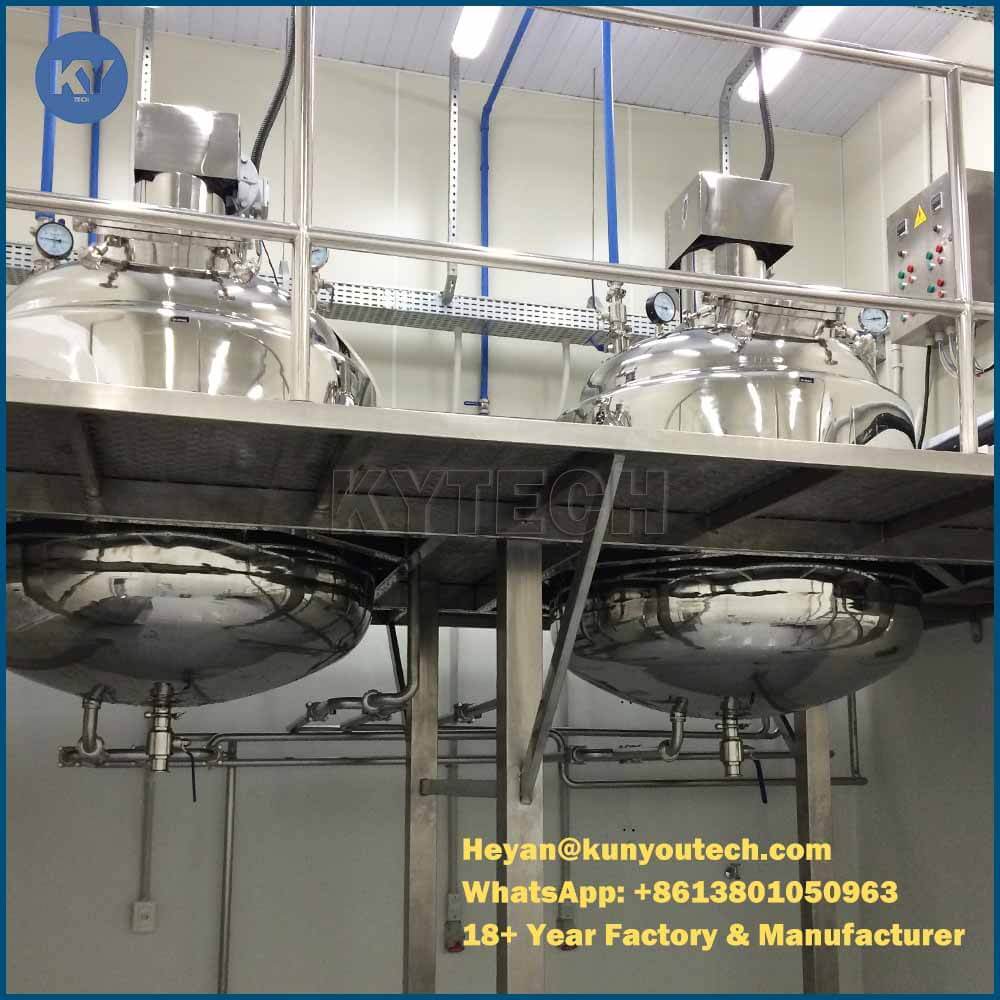

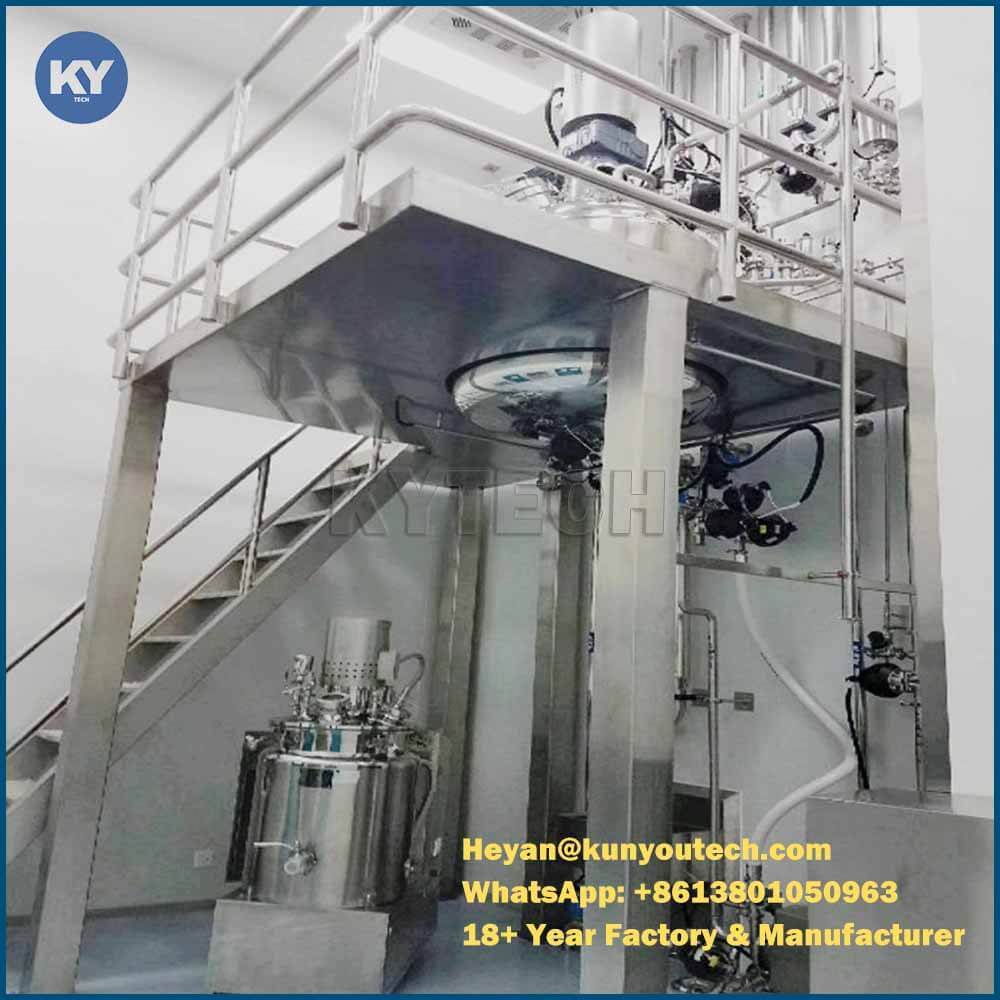

Stationed gelatin melter
| Mounting | Four feet support.on platform |
| Structure | Three layered water bathe |
| Material | SUS304.Medicine contacting partsSUS316 |
| Standard | GB 150-1998 and GMP |
| Max vacuum | <-0.09MPa |
| Opening | View glass DN100.Man hole Φ450×Φ350 |

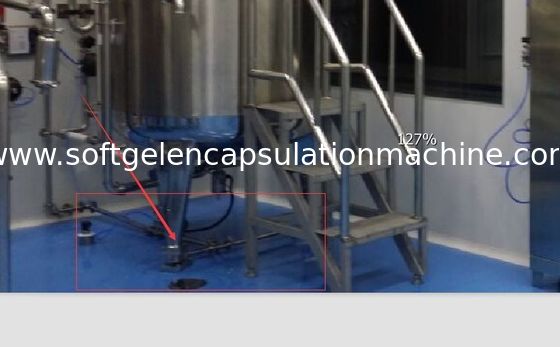

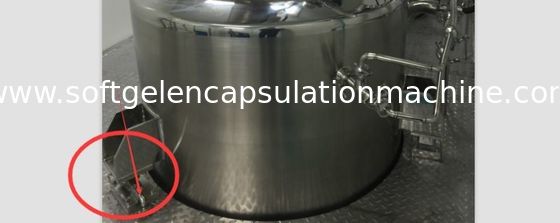

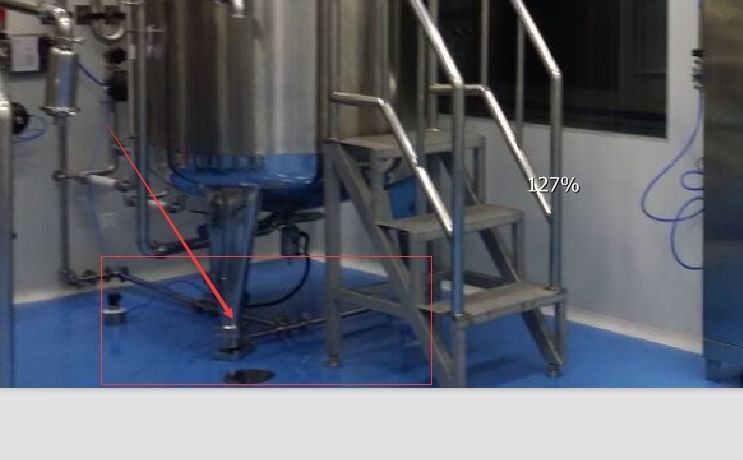

| Temperature sensor | Bottom RTD sensor |
| Power | 380V/240V 50/60Hz 7.5Kw |

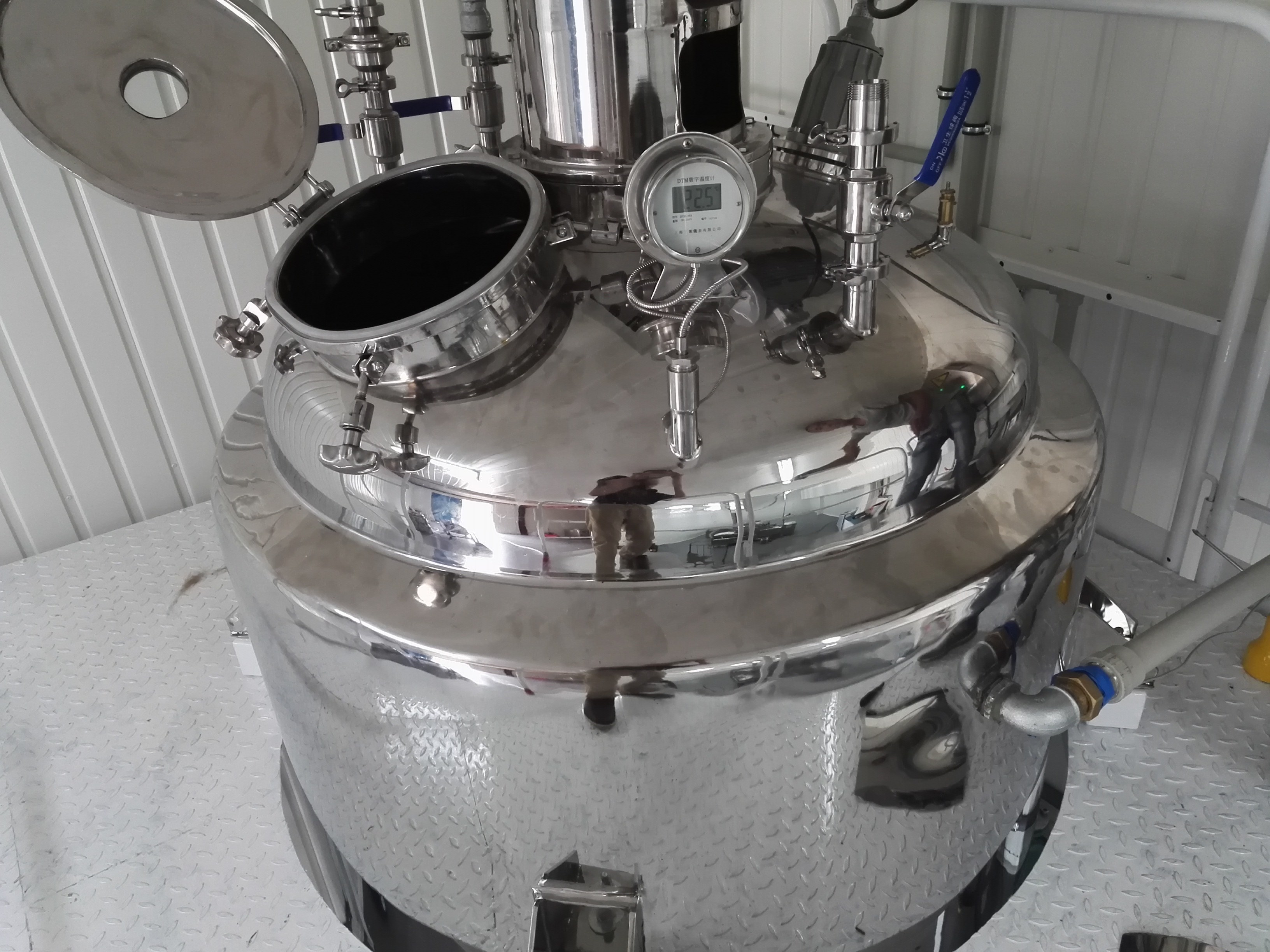

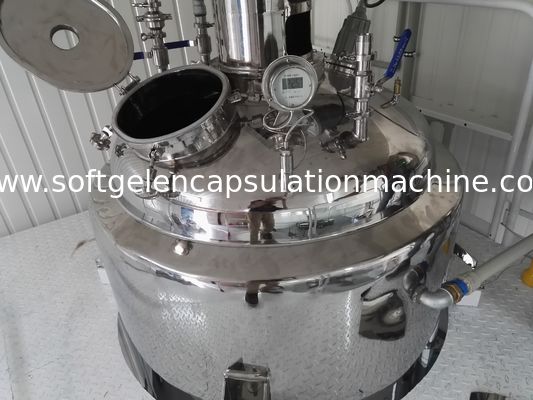

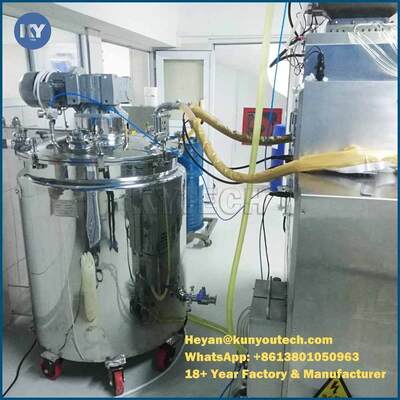

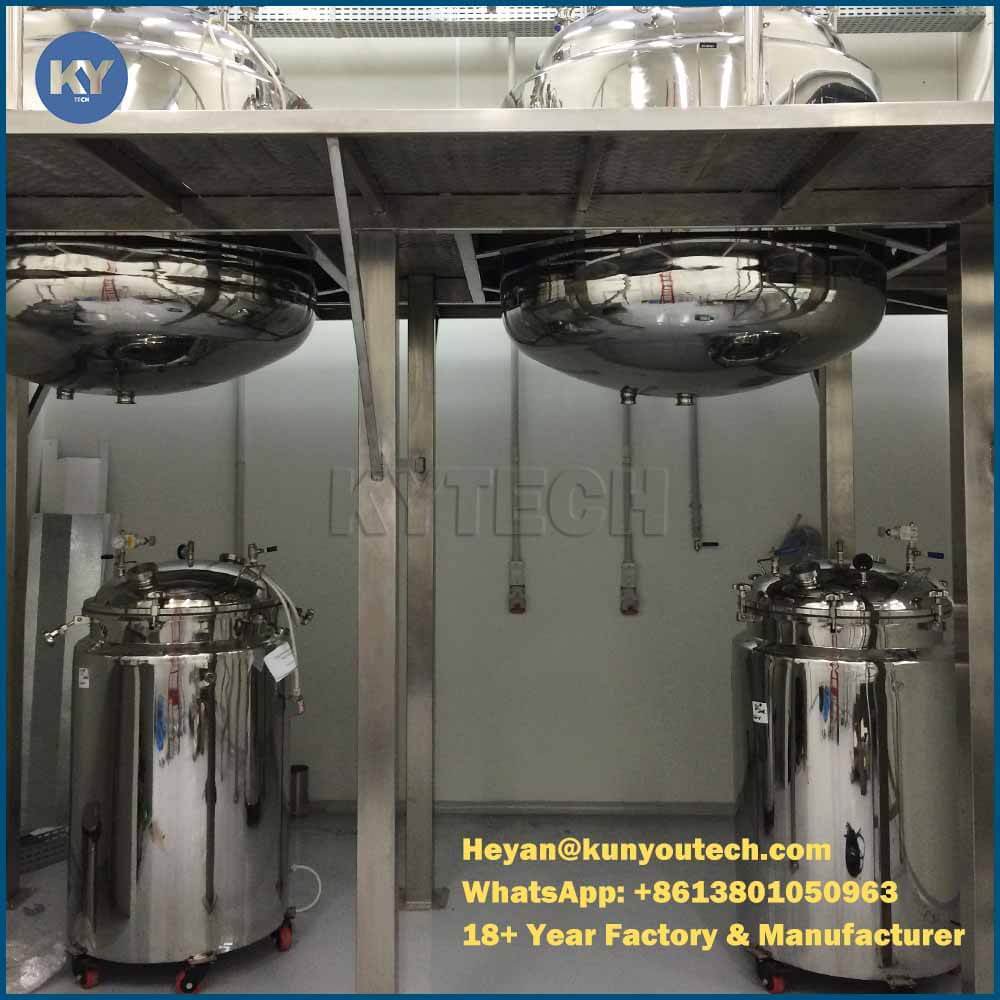

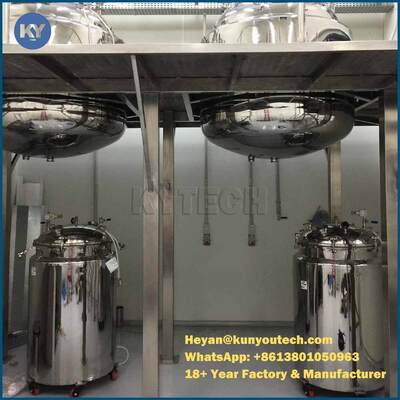

Movable gelatin melter and service tank
| Structure | Three layered water bathe |
| Material | SUS304.Medicine contacting partsSUS316 |
| Standard | GB 150-1998 and GMP |
| Max vacuum | <-0.09MPa |
| Opening | Gel inlet 160×130mm. View glass Φ60mm |
| Hydraulic lift range | 500mm |
| Temperature sensor | Bottom RTD sensor |
| Gelatin discharge | Upper outlet |
| Power | 380V/240V 50/60Hz 7.5Kw |
